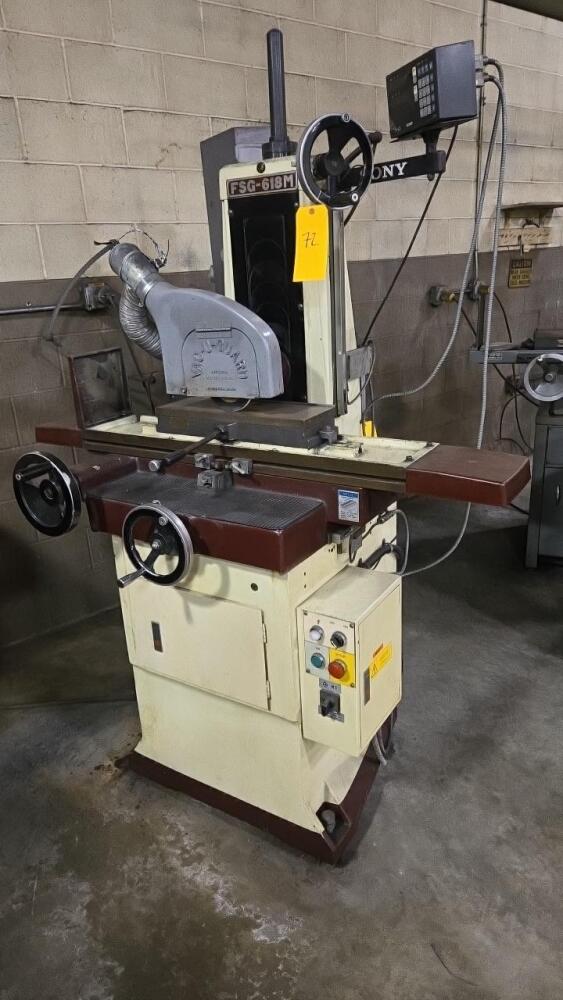

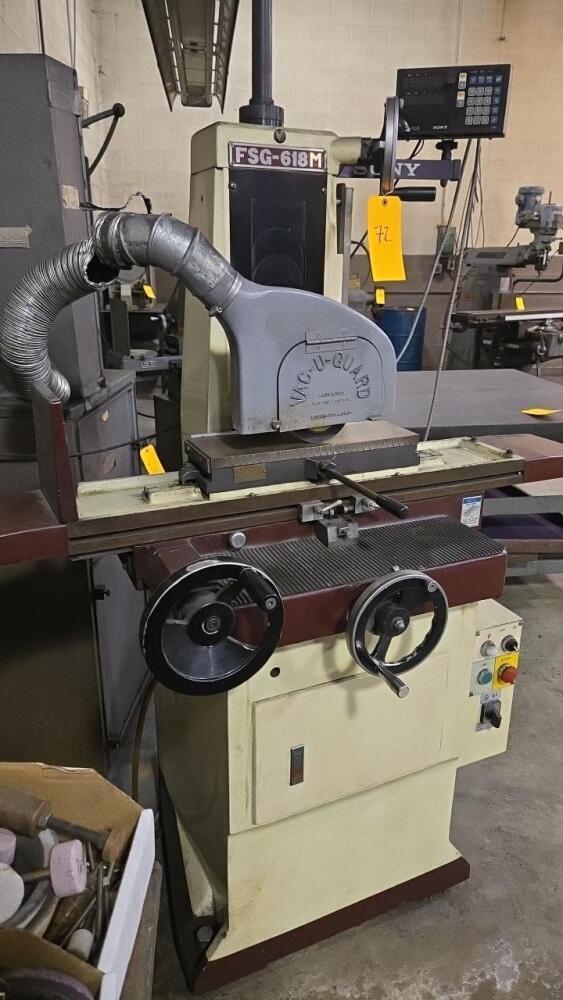

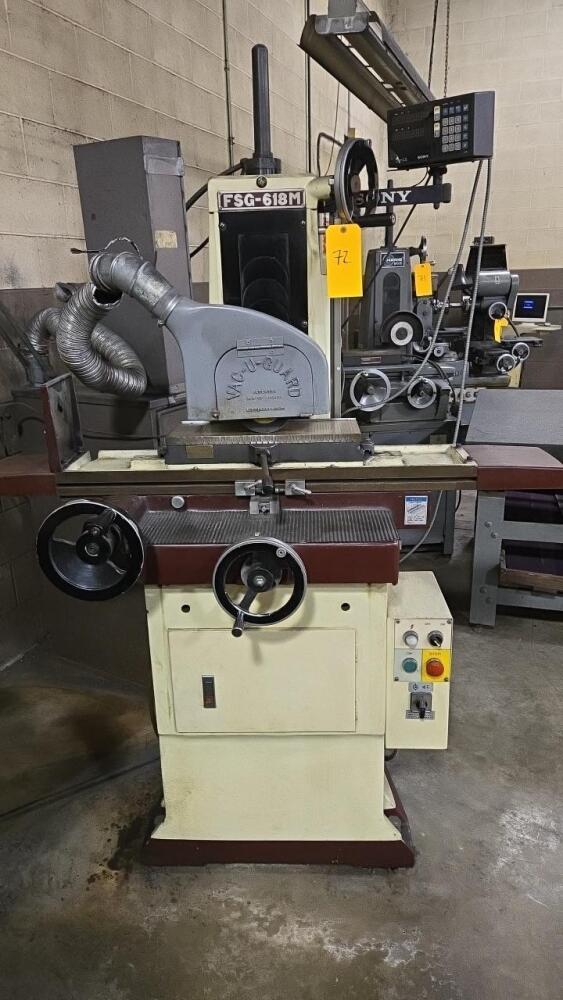

Chevalier FSG-618M 6" x 18" manual surface grinder with VAC-U-GUARD dust collector, 1.5 HP spindle motor, 3450 RPM spindle, longitudinal travel 20", cross travel 7", vertical travel 11.8", machine weight 1,500 lbs (680 kg), 230V/3-phase electrical requirements, manual control, VAC-U-GUARD included.
Category: Manual Surface Grinder
Make: Chevalier
Model: FSG-618M
Table Size: 6" x 18" (152 mm x 457 mm)
Maximum Grinding Length: 18" (457 mm)
Maximum Grinding Width: 6" (152 mm)
Spindle Motor Power: 1.5 HP (1.1 kW)
Spindle Speed(s): 3450 RPM
Longitudinal Table Travel: 20" (508 mm)
Cross Table Travel: 7" (178 mm)
Vertical Travel: 11.8" (300 mm)
Machine Dimensions (L x W x H): 63" x 45" x 70" (1,600 mm x 1,145 mm x 1,780 mm)
Machine Weight: 1,500 lbs (680 kg)

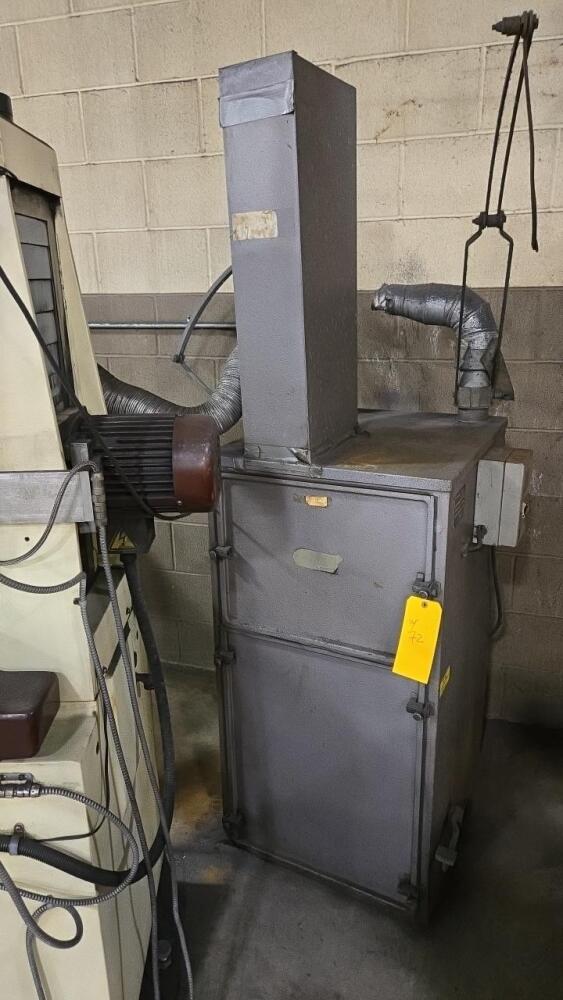

Accessories/Tooling Included: VAC-U-GUARD dust collector, basic hand wheels, manual controls
Control Type: Manual Hand Feed
